SP500 Walk Through Metal Detector Arch

SP500 Walk Through Metal Detector Arch

£1,350.00 Exc. VAT

Walk Through Metal Detector

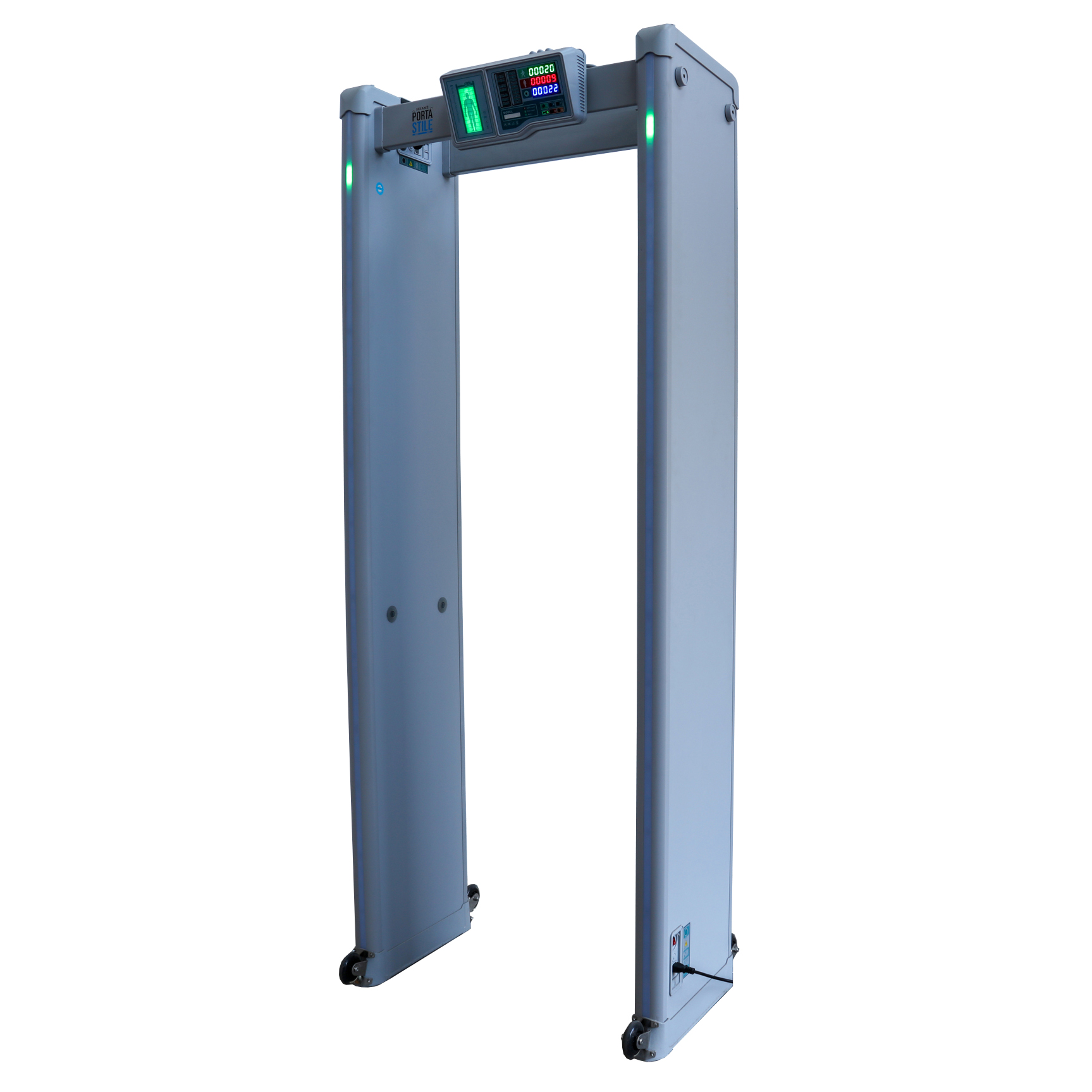

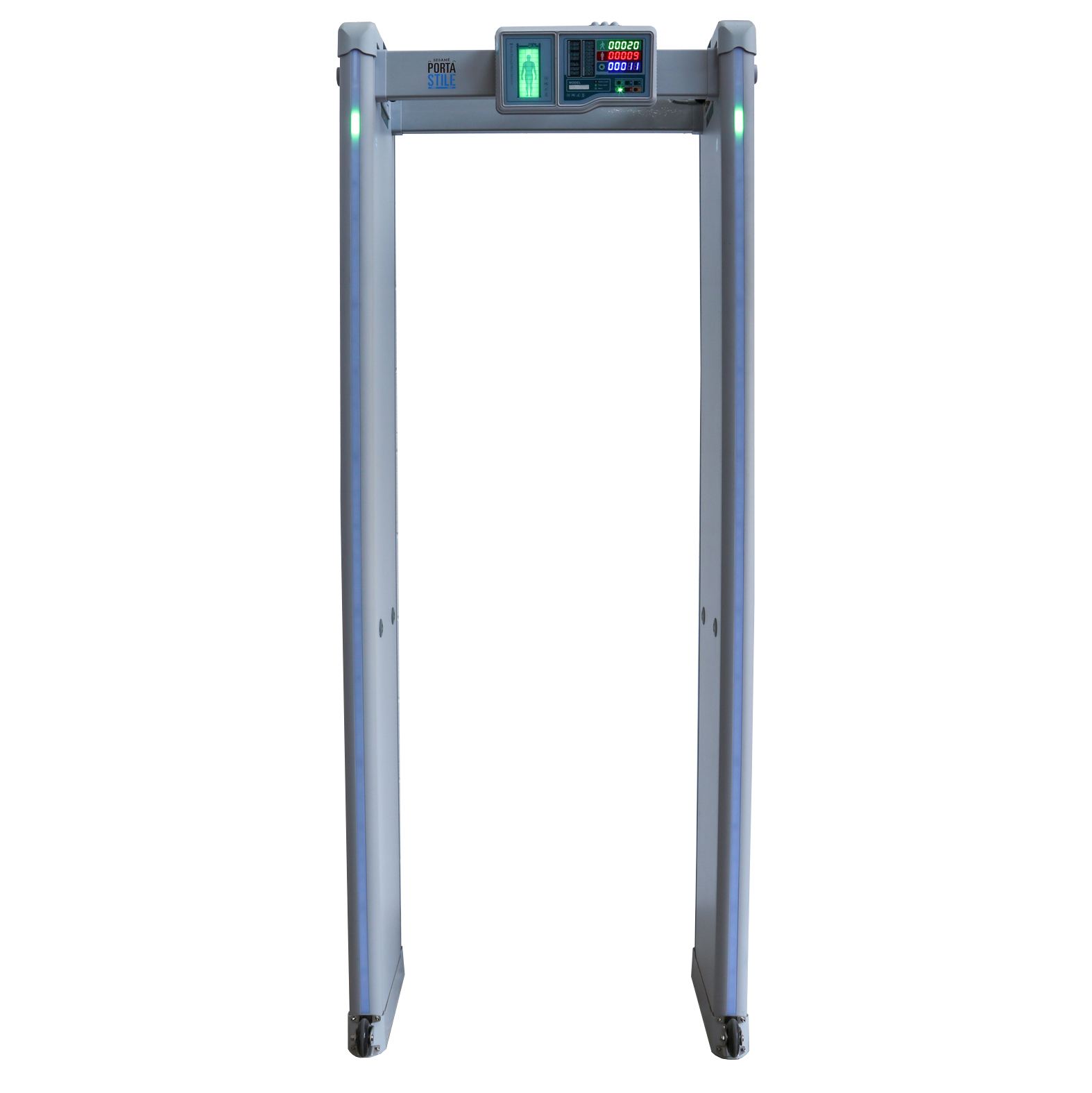

The SP500 is a high-performance metal detector arch with high metal detection sensitivity. Thanks to its design it is simple to set up and can be moved around site using its integral wheels to different locations with relative ease.

The SP500 has 33 detections zones can each be adjusted individually with up to 400 levels to choose from. Its easy-to-use digital tube display comes with 72 pre-programmed settings for use at a variety of venues.

The SP500 model has a built-in tally counter showing the user how many people have passed through the arch and how many time the alarm has been triggered. It can also operate on 100 different frequencies meaning that it can be used in tandem with multiple other arches.

Multi Buy Offer - Buy 2 or more Arches & save £75.00 per arch

SP500 Walk Through Metal Detector Arch

  • 33 Detection Zones
  • Adjustable Sensitivity of Each Detections Zone – 400 Levels
  • Multiple Operating Frequencies

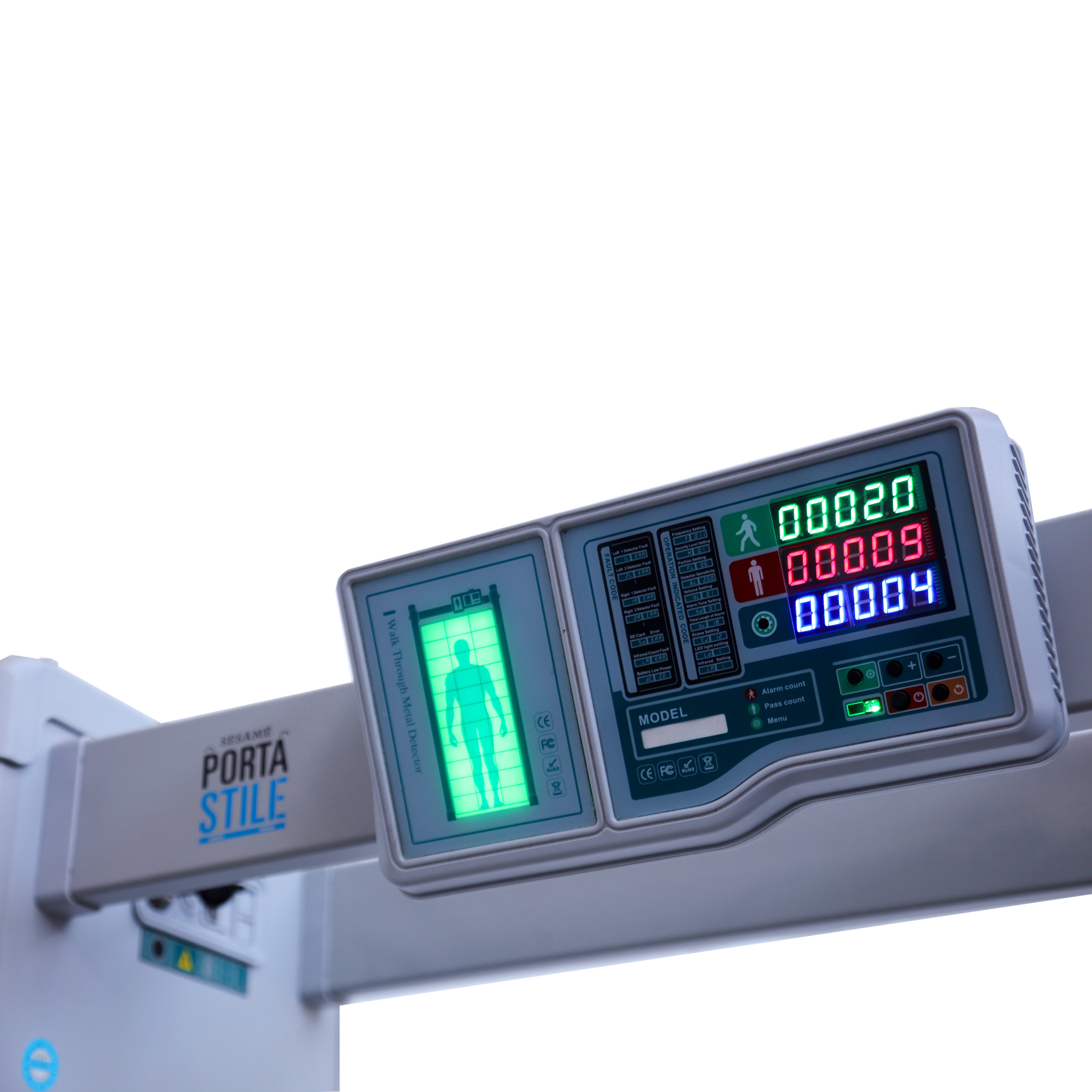

  • Digital Tube Display
  • Infrared Stop Start Technology
  • Automatic Counting Function
  • Audible & LED Alarm
  • High Speed Detection
  • Password Protected
  • Indoor Use
  • Speedy Delivery from Our UK Stock
  • 12 Month Manufacturer’s Warranty


  • Set Up External Dimensions – 2190x535x892mm
  • Set up Internal Dimensions – 2030x716mm
  • Net Weight – 45kg
  • Gross Weight – 52kg
  • Number Of Detection Zones – 33 Zones
  • Pass Counter – YES
  • Alarms – Adjustable with Variety of Alarm Types
  • Operating Frequency – Adjustable Ranging from 0-50
  • Detection Speed – High Detection Speed up to 1 Person Per Second
  • Sensitivity Levels – 0-400
  • Operating Voltage – AC90V-240V 50/60hz
  • Operating Temperature -20c to +65c
  • Assembly Time – 5 Minutes
  • Screen Interface – Digital Tube Display
  • Password Protection – Yes
  • Warranty – 12 Months for Manufacturing Defects
