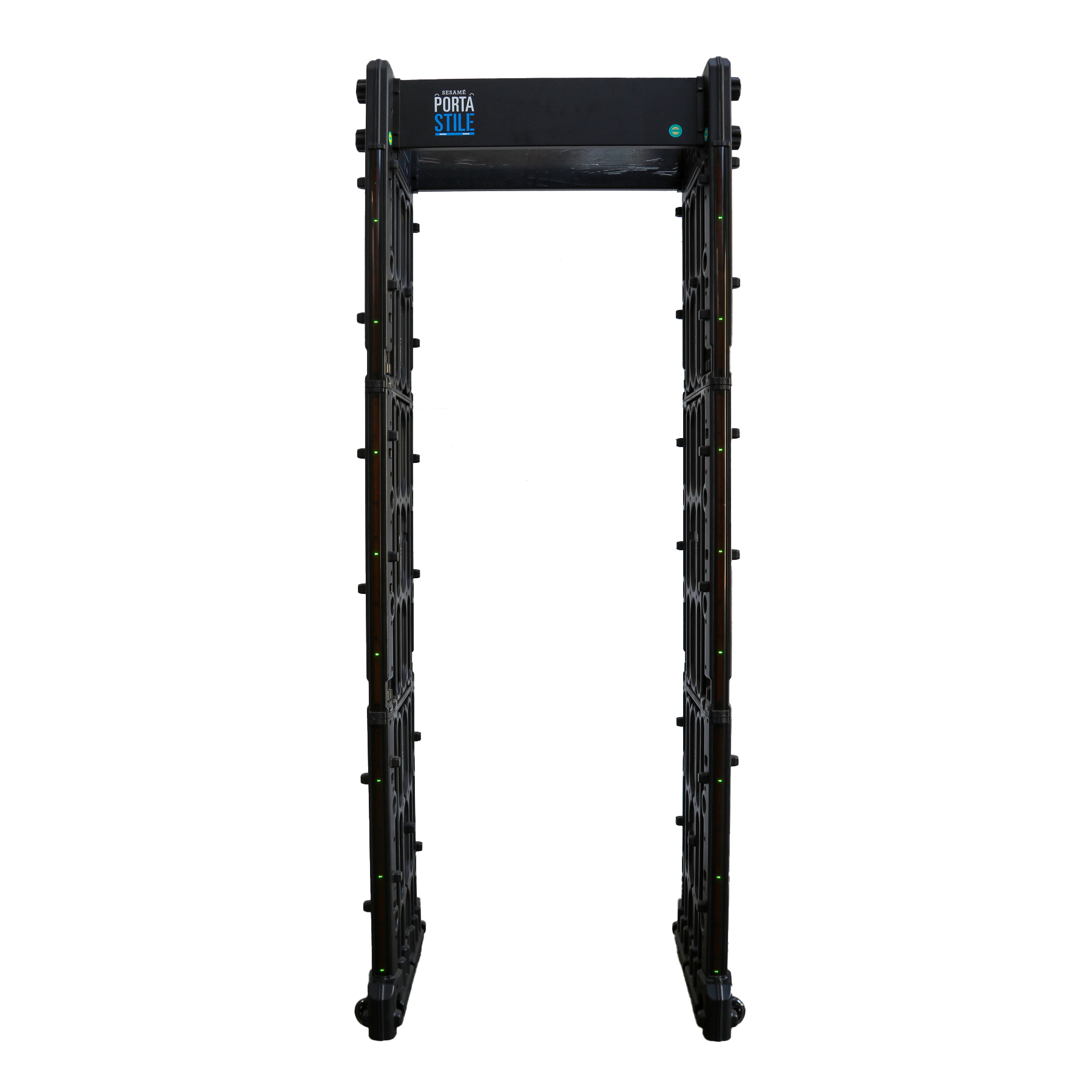

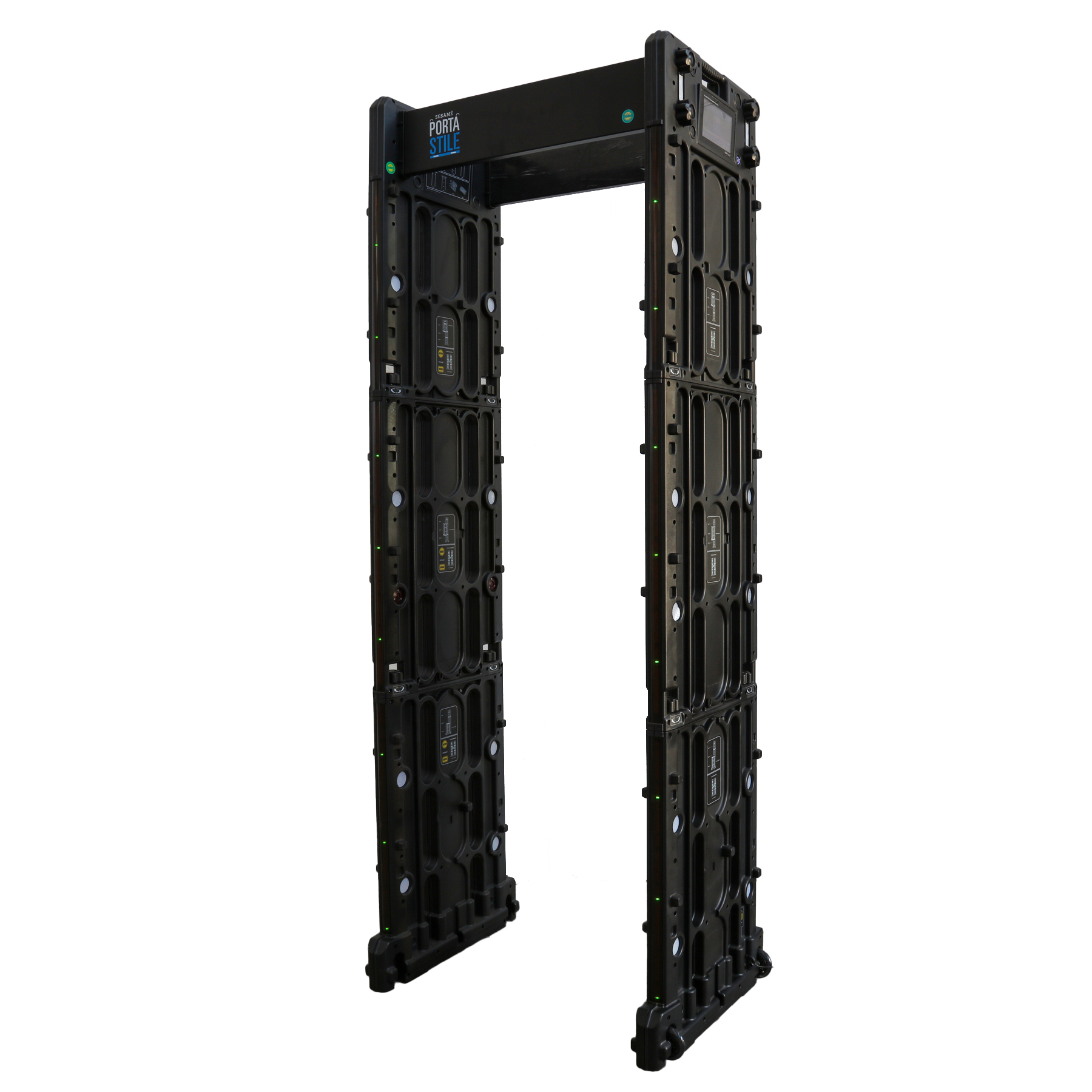

SP700 Portable Walk Through Metal Detector Arch

SP700 Portable Walk Through Metal Detector Arch

Original price was: £2,083.33.Current price is: £1,916.67. Exc. VAT

8% Off

Portable Walk Through Metal Detector

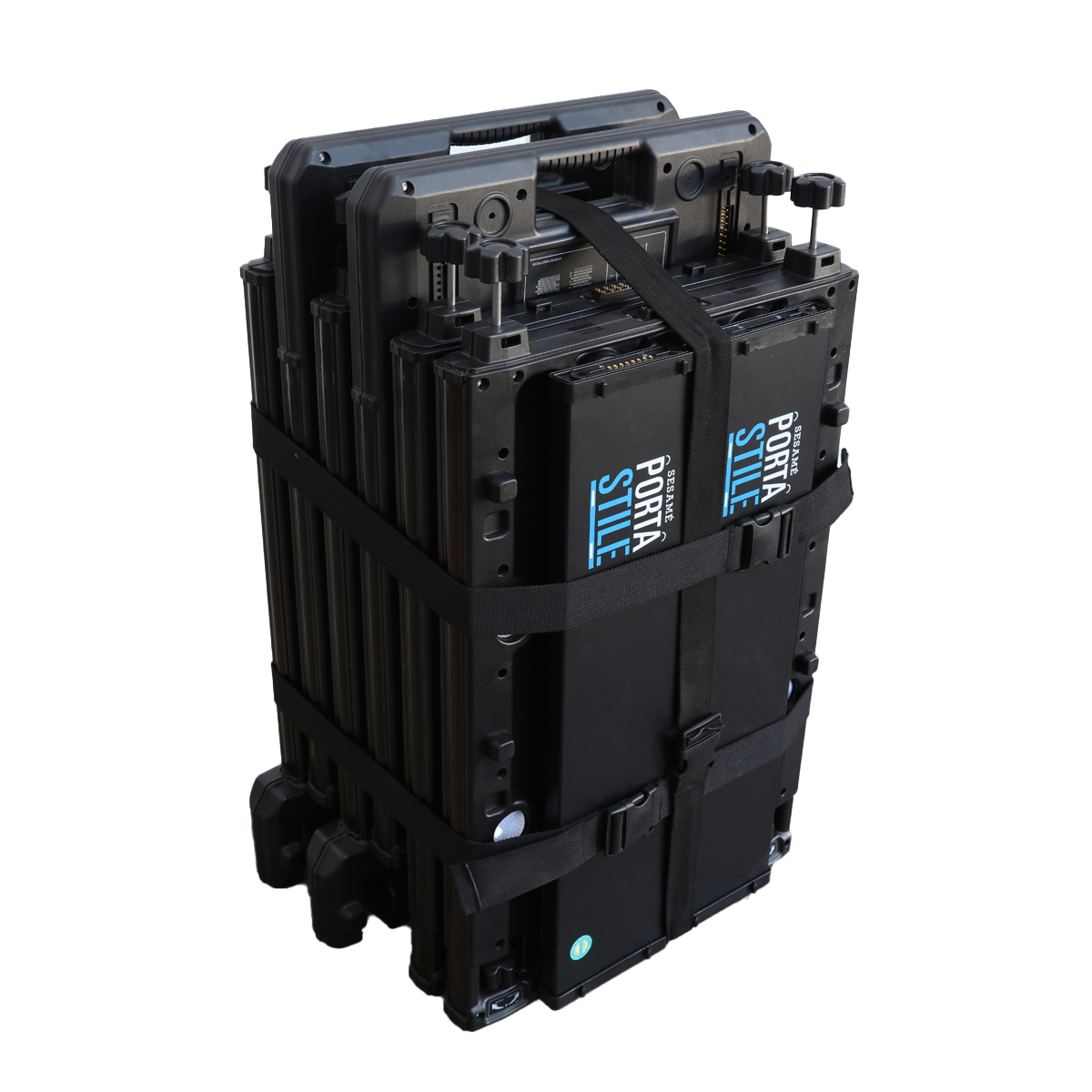

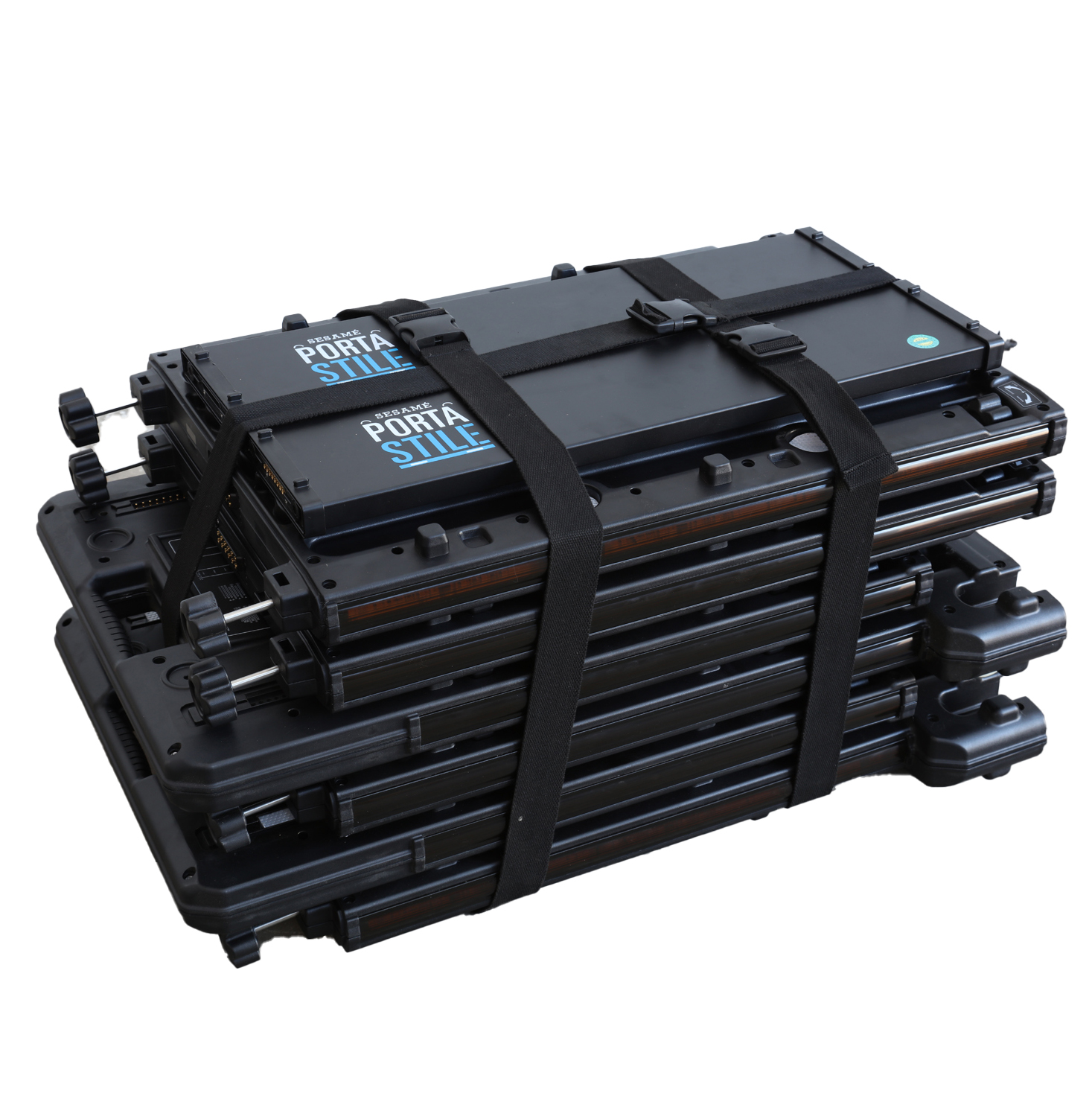

The SP700 model is presented in collapsible form. The metal detector can be assembled and disassembled into 8 parts in a matter of minutes and is easily transportable using its integral wheels and handles.

The SP700 model is made of heavy duty, waterproof and electrical protecting PVC material, which allows to be used both indoors and outdoors. The degree of dust and moisture protection is IP55. This can be increased with the optional extra of a waterproof canopy that covers the frame of the arch to protect from rain.

The SP700’s 72 touch screen display makes it very simple to set up an operate. It has a number of pre-programmed settings for use at different venues. With its 24 individual detection zones (each zone has 255 levels of adjustable sensitivity) and LED indicators making it very easy for the operator to identify the location of prohibited metal objects. The arch can also count number of people passing through in either direction and the total number of alarms triggered.

The arch has up to 100 different operating frequencies which can be set manually or automatically allowing the user to choose the optimum setting for the working environment around them filtering out interference around them and also allowing multiple arches to be used on the same site near one another.

Multi Buy Offer - Buy 2 or more Arches & save £75.00 per arch

SP700 Portable Walk Through Metal Detector Arch

  • Portable Walkthrough Metal Detector Arch
  • Modular Construction for Rapid Deployment
  • 24 Detection Zones
  • Adjustable Sensitivity of Each Detections Zone – 255 Levels
  • Multiple Operating Frequencies
  • 7” Touch Screen Display
  • Infrared Stop Start Technology
  • Automatic Counting Function
  • Audible & LED Alarm
  • High Speed Detection
  • Password Protected
  • IP55 Rated / IP67 Waterproof Cover Available
  • Speedy Delivery from Our UK Stock
  • 12 Month Manufacturer’s Warranty


  • Number Of Detection Zones – 24 Zones
  • Pass Counter – YES – In, Out & Alarm Count
  • Alarms – Adjustable with Variety of Alarm Types
  • Operating Frequency – Adjustable Ranging from 0-100
  • Detection Speed – High Detection Speed up to 1 Person Per Second
  • Sensitivity Levels – 0-255
  • Operating Voltage – AC110V – 240V 50-60Hz
  • Operating Temperature – -20c to +60c
  • Relative Humidity – 99% Non-Condensing
  • IPX Rating – IP55 (IP67 with optional extra Waterproof Cover)
  • Assembly Time – 5 Minutes once fully trained
  • Screen Interface – 7 Inch LCD Touch Screen
  • Primary Material – ABS Polycarbonate Alloy
  • Modular Design – Yes
  • Number of Components – 8 Pieces
  • Password Protection – Yes
  • Size of Product – 2250x830x500mm
  • Packaged Size – 550x686x968mm.
  • Net Weight – 42KG
  • Gross Weight – 52KG
  • Warranty – 12 Months for Manufacturing Defects
